WHEEL COLLECTION
M02
FINISH:
*18x8 Model Shown
-
SIZES
17x8 17x9 18x8 18x9 20x8.5 20x10
-
BOLT PATTERNS
5x4.50 5x4.75
-
LUG NUTS

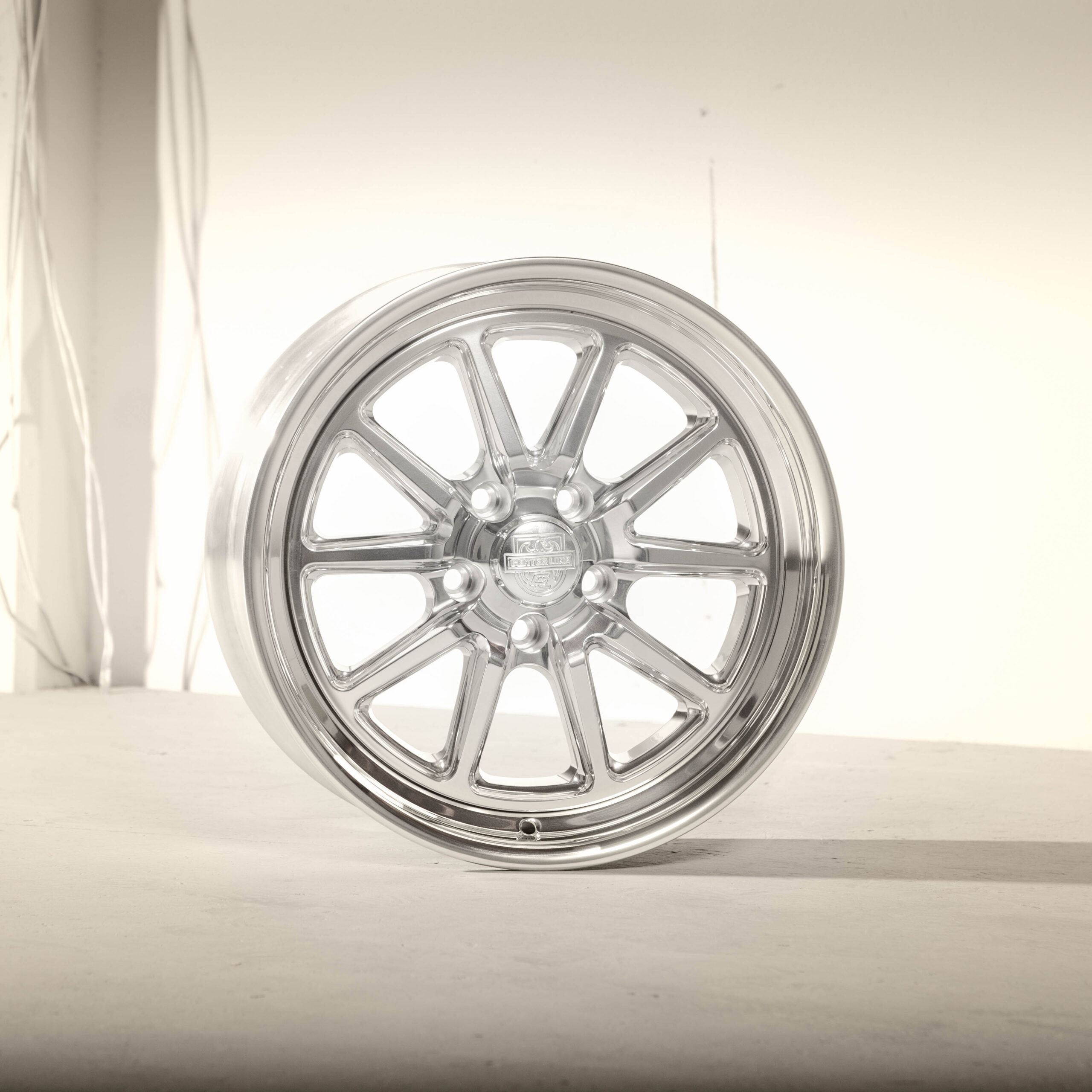

The M02 Wheel is a refined take on classic performance styling, featuring a split-spoke design and deep polished finish that delivers timeless appeal. Crafted as a 2-piece forged wheel, it combines strength, lightweight performance, and premium aesthetics. Offered in diameters from 17″ to 20″ and widths ranging from 8″ to 10″, the M02 is built to meet the needs of both street and show builds that demand bold presence and precision fitment.
LIP Variations
17x8

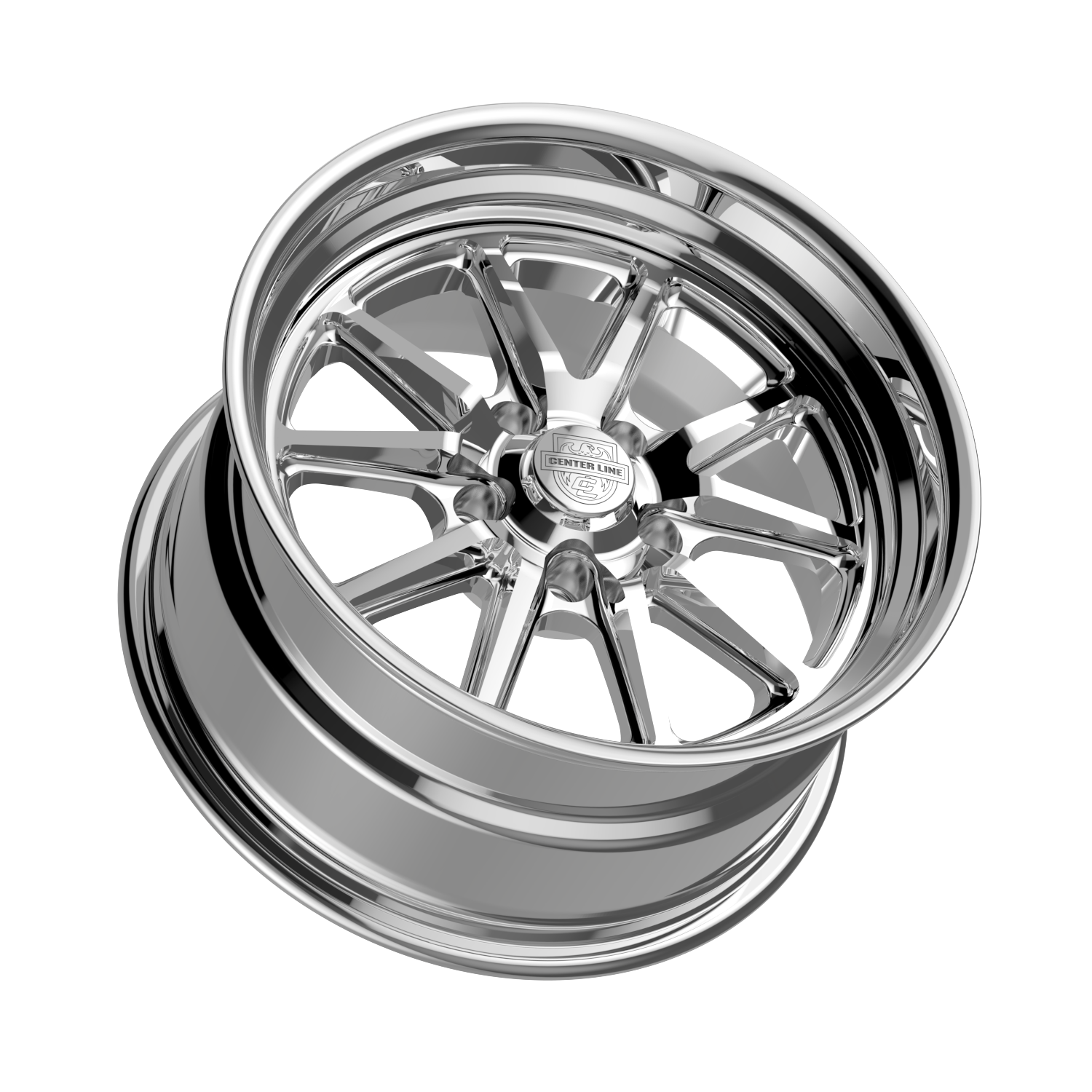

17x9
18x8
18x9
20x8.5
20x10
available sizes
| PART NUMBER | FINISH | WHEEL SIZE | BOLT PATTERN | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP | MAP |
|---|---|---|---|---|---|---|---|---|---|
| M01-17805114Q00P | Polished | 17X8 | 5X4.50 | 0 | 4.5 | 83.82 | 1800 | CAP-CLP-P25 | $983.00 |
| M01-17805120Q00P | Polished | 17X8 | 5X4.75 | 0 | 4.5 | 83.82 | 1800 | CAP-CLP-P25 | $983.00 |
| M01-17905114Q00P | Polished | 17X9 | 5X4.50 | 0 | 5 | 83.82 | 1800 | CAP-CLP-P25 | $983.00 |
| M01-17905120Q00P | Polished | 17X9 | 5X4.75 | 0 | 5 | 83.82 | 1800 | CAP-CLP-P25 | 983 |
| M01-18805114Q00P | Polished | 18X8 | 5X4.50 | 0 | 4.5 | 83.82 | 1800 | CAP-CLP-P25 | 1021 |
| M01-18805120Q00P | Polished | 18X8 | 5X4.75 | 0 | 4.5 | 83.82 | 1800 | CAP-CLP-P25 | 1021 |
| M01-18905114Q00P | Polished | 18X9 | 5X4.50 | 0 | 5 | 83.82 | 1800 | CAP-CLP-P25 | 1047 |
| M01-18905120Q00P | Polished | 18X9 | 5X4.75 | 0 | 5 | 83.82 | 1800 | CAP-CLP-P25 | 1047 |
| M01-20855114Q00P | Polished | 20X8.5 | 5X4.50 | 0 | 4.75 | 83.82 | 1800 | CAP-CLP-P25 | 1123 |
| M01-20855120Q00P | Polished | 20X8.5 | 5X4.75 | 0 | 4.75 | 83.82 | 1800 | CAP-CLP-P25 | 1123 |
| M01-20105114Q00P | Polished | 20X10 | 5X4.50 | 0 | 5.5 | 83.82 | 1800 | CAP-CLP-P25 | 1148 |
| M01-20105120Q00P | Polished | 20X10 | 5X4.75 | 0 | 5.5 | 83.82 | 1800 | CAP-CLP-P25 | 1148 |
Learn More
TWO PIECE FORGED
Introducing the Center Line’s 2-Piece forged construction that comes standard on all styles: Crafted with precision and performance in mind, these wheels are the epitome of automotive excellence. Meticulously engineered using cutting-edge forging techniques, they boast unparalleled strength and durability, ensuring optimal performance on road.
VIEW PROCESS
