F40
LP1
U.S. Patent No. D842,197

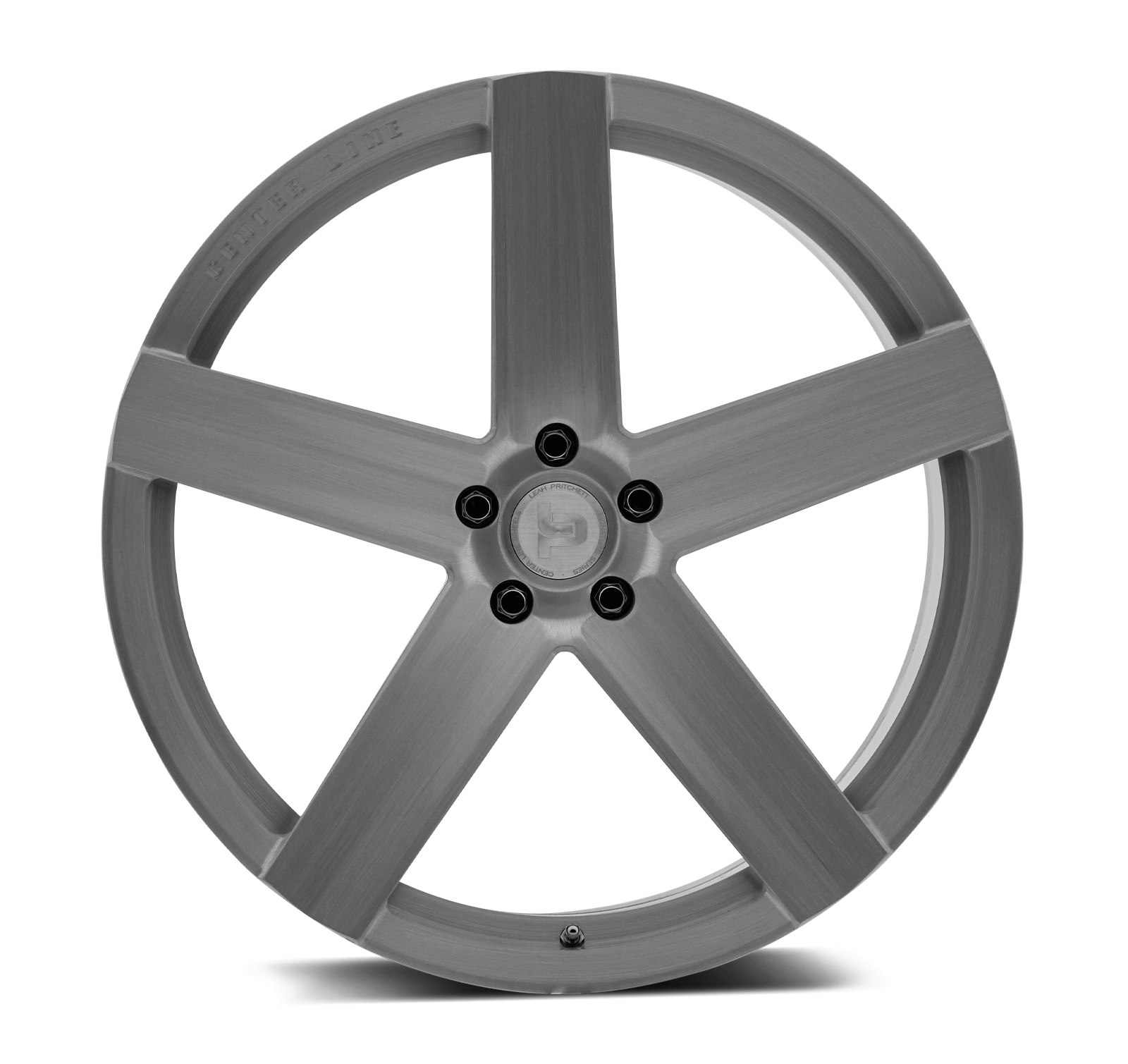

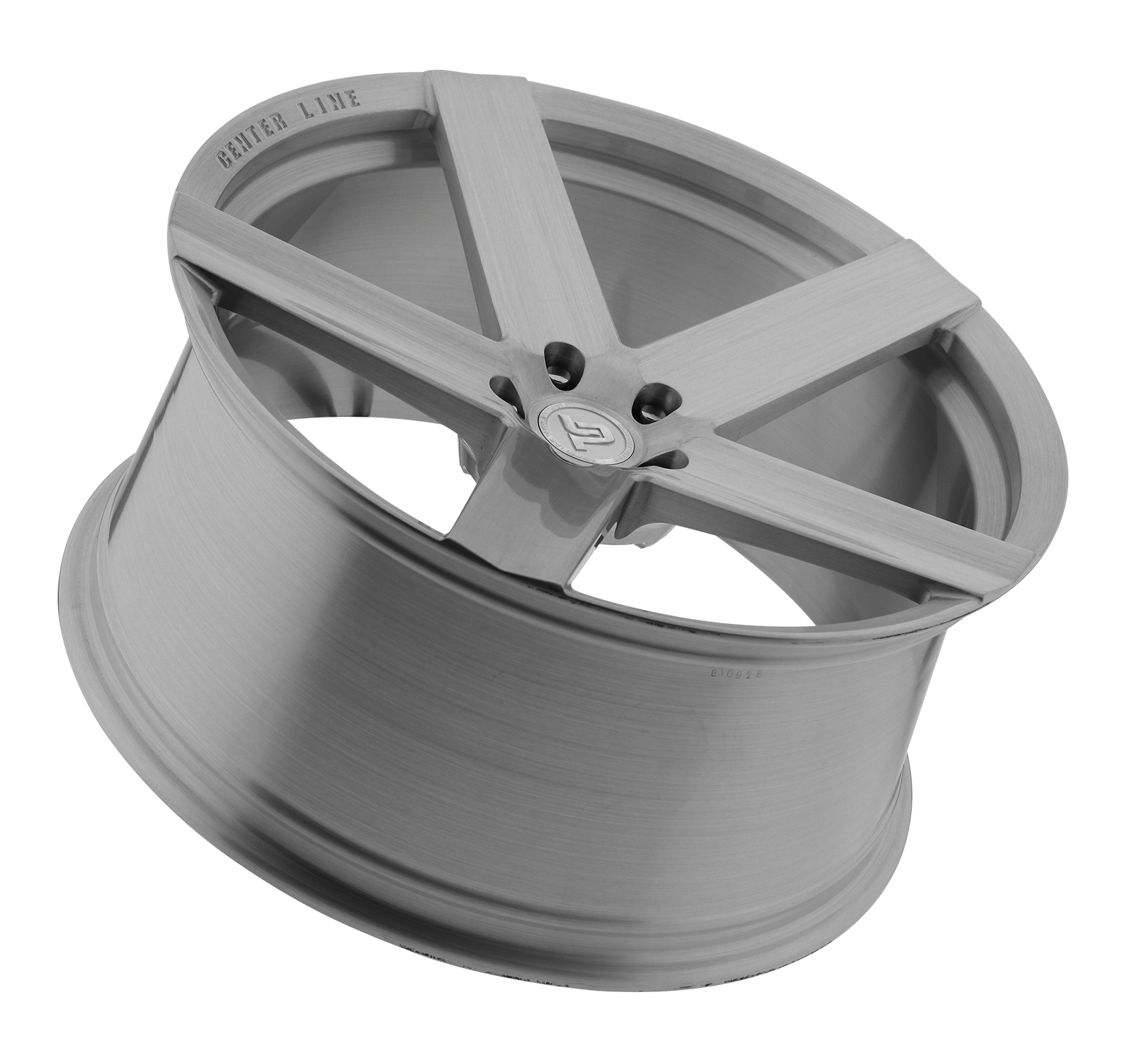

The LP1 is professional top-fuel dragster Leah Pritchett’s very own take on the flat, traditional 5-spoke design. Available in a Satin Black or simple Brushed Dark Tint finish, the smooth design of this 20” and 22” muscle car wheel is sure to give your build an OEM plus aesthetic.
-
available Diameters:
available
sizes
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore |
|---|---|---|---|---|---|
| F40HB-20951518 | 20x9.5 | 5x115 | 18 | 5.96 | 71.5 mm |
| F40HB-2211525 | 22x10.5 | 5x115 | 25 | 6.73 | 71.5 mm |
| F40HB-2291515 | 22x9.5 | 5x115 | 15 | 9.5 | 71.5 mm |
| F40SB-20951518 | 20x9.5 | 5x115 | 18 | 5.96 | 71.5 mm |
| F40SB-2211525 | 22x10.5 | 5x115 | 25 | 6.73 | 71.5 mm |
| F40SB-2291515 | 22x9.5 | 5x115 | 15 | 9.5 | 71.5 mm |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore |
|---|---|---|---|---|---|
| F40HB-20951518 | 20x9.5 | 5x115 | 18 | 5.96 | 71.5 mm |
| F40SB-20951518 | 20x9.5 | 5x115 | 18 | 5.96 | 71.5 mm |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore |
|---|---|---|---|---|---|
| F40HB-2211525 | 22x10.5 | 5x115 | 25 | 6.73 | 71.5 mm |
| F40HB-2291515 | 22x9.5 | 5x115 | 15 | 9.5 | 71.5 mm |
| F40SB-2211525 | 22x10.5 | 5x115 | 25 | 6.73 | 71.5 mm |
| F40SB-2291515 | 22x9.5 | 5x115 | 15 | 9.5 | 71.5 mm |
